14L/Minute Air Operated Diaphragm Pump

ruian chuangbo machine co.,ltd

14L/Minute Air Operated Diaphragm Pump

Brand Name : CBB

Model Number : QDM-902

Certification : CE

Place of Origin : Zhejiang

MOQ : 1 piece

Price : USD100/piece

Payment Terms : T/T, Western Union

Supply Ability : 2000 pieces per month

Delivery Time : 3-7 days

Packaging Details : Plywood carton

Model NO. : QDM-902

Material : Aluminum

Power : Press air

Working : Diaphragm

Diaphragm : Teflon

Flow : 14L/minute

Pressure : 0.25-0.60MPa

Usage : Ink pump

Weight : 3.5kg

HS code : 8413503990

Contact Now

QDM-902 Pneumatic Diaphragm Pump For Mix Ink Safe Aired QDM-902 Single Phase
Introduction

Pneumatic diaphragm pump is a new type of conveying machinery. Its power supply is compressed air. It can take out various corrosive liquid with particles, liquid with high viscosity, volatile, poisonous. This pump is characterized by no need to irrigation water diversion for fire blast. It can pump flowing liquid and transport some free running dielectric, fire and explosion protection.

Principle

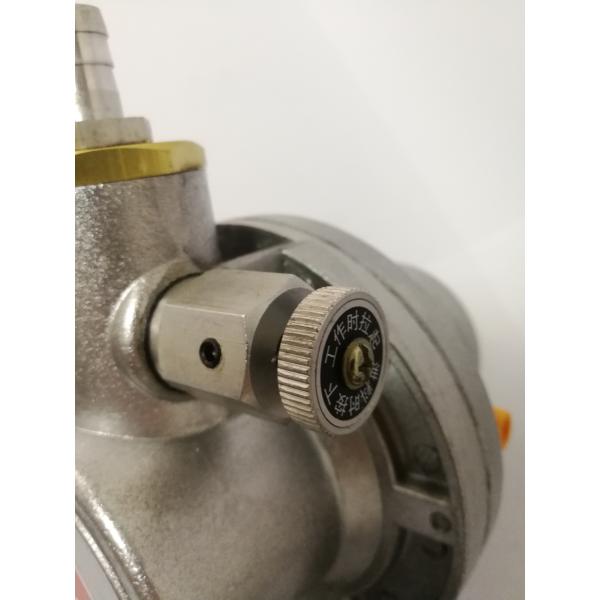

It takes the air as momentum which compressed by air compressor. The needle valve adjust the air flow, which drive the membrane, then the pump transport the liquid.

The scope of application
Printing industry

Chemical industry producing printing ink(water-based, oily) solvent, ethanol, tuluol, acetone, dope and so on

Other industry need the safe pneumatic pump.

Characteristic
1. Low air consumption, the medium flow regulation is stepless regulation, and it is adjusted by air inlet valve.
2. Membrane is made of corrosion resistant material, so it can be used to transport corrosive medium.
3. Low failure rate, easy to install, convenient maintenance.
4. The pump shell is made of high quality material, the inner parts are made of stainless steel and copper, all of those make the pump light, beautiful, stainless and anticorrosive.

Technical parameters
Type: QDM-902
Working pressure: 0.25-0.60 Mpa
Maximum Output Flow: 14L/min
Maximum transmission viscosity: 1000 centipoise
Biggest suction: 6 meters
Medium in and out connection threads: G1/4 inch
The intake connecting thread: G1/4 inch

NameModelWorking PressureMax
Suction
Max
output
flow
Linking screwsState of the fluid
Ink InletInk OutletAir Inlet
One-way Pneumatic Diaphragm PumpQDM-9020.25-0.6(Mpa)6M14LG1/4"G1/2"
G1/4"
G1/4"Having
Pulse
Two-way Pneumatic Diaphragm PumpQDM-9010.12-0.8(Mpa)8M26LG1/2"G1/2"G1/4"Zero
Pulse
